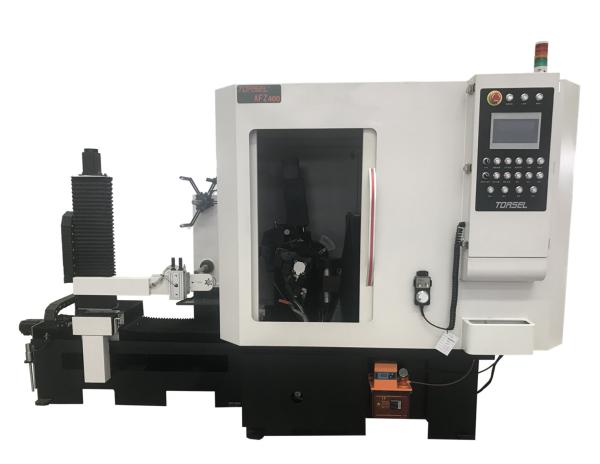

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader

Name: ATZ400 ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader
Brand: TORSEL
Price: 25000 USD

Brand Name : TORSEL

Model Number : ATZ400/ATZ500

Certification : CE,ISO 9001

Place of Origin : MADE IN CHINA

MOQ : 1

Price : 25000~38000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000UNITS/A

Delivery Time : 25-35DAYS

Packaging Details : Water Proof + Wood Carton

FUNCTION : TOP ANGLE GRINDING

MAX DIA. : 120-505MM

THICKNESS : 0.5-10MM

TOP ANGLE : 8°~17°

BEVEL ANGLE : -45°~45°

CIRCUMFERENTIAL RANGE : 0°~5°

TIPS LENGTH RANGE : 1~15MM

PITCH : 2~65MM

Grinding Wheel Speed : 3.5~20S/TIP

WHEEL GRINDING SPEED : 3500`5800RPM

WHEEL SIZE : 125*32*25MM

PRECISION : < 0.02MM

POWER : 5.5KW

DIMENSION : 2750*1300*1865MM (L*W*H)

WEIGHT : 2100KG

FEATURES : 7*24 HOURS WORKING

LOADER PLACING SAWS QTY : 100PCS

LOADING & PICKING SAWS TIME : 12~24S

BORE : 12~32MM,12~50MM,12~80MM

FEATURES-2 : LOADER PICK & PLACE SAWS INSTEAD OF MANUAL

FEATURES-3 : SAVE LABOR COST

FEATURES-4 : INCREASE EFFICIENCY & PRODUCTIVITY

Contact Now

Product Description

ATZ400/ATZ500 CNC TOP ANGLE Grinding Machine With Loader for TCT TIPS TOP angle sharpening with Robot (PRECISION)
High-level productivity & precision grinding machine for carbide tools.

• Saw blade Diameter: < 505mm
• Function: top angle sharpening
• Precision: <0.02mm
• Model: ATZ 400 / ATZ 500
• Pitch:<65mm
• Cooperation Company
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding TOP ANGLE of sawblade

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader

CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

Features

3-D Graphics Grinding Machine

Technical Premeter

Model	ATZ500	ATZ400
Saw Diameter	120~505mm	120~405mm
Plate Thickness	0.5~10mm	0.5~10mm
Top Angle	8°~17°	8°~17°
Bevel Angle	-45°~45°	-45°~45°
Bore Diameter	12~80mm	12~80mm
Pitch	2~65mm	2~65mm
Tip Length	1~15mm	1~15mm
Wheel Power	0.75KW	0.75KW
Wheel Diameter	1253225mm	1253225mm
Wheel Bore	32mm	32mm
Wheel Linear Velocity	30m/s	30m/s
Grinding Speed	2mm~10mm/s	2mm~10mm/s
Processing Efficiency	3.5~20 tip/min	3.5~20 tip/min
Grinding Accuracy	<0.02mm	<0.02mm
Loader Changing Saws Qty	100	100
Loader Changing Saws Times	12s	24s
Coolant Tank	70 L	70 L
Input Voltage	380V 50Hz(OR 220V60Hz)	380V 50Hz(OR 220V60Hz)
Power	Approx 5.5KW	Approx 5.5KW
Dimension	2750mm1300mm1865mm	2600mm1300mm1865mm
Weight	2300kg	2200kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
